IT never stands still, which is why ACA Group is constantly investigating innovative solutions and tools. One of those tools is Flux. In this blogpost, our experts share their experience and findings.

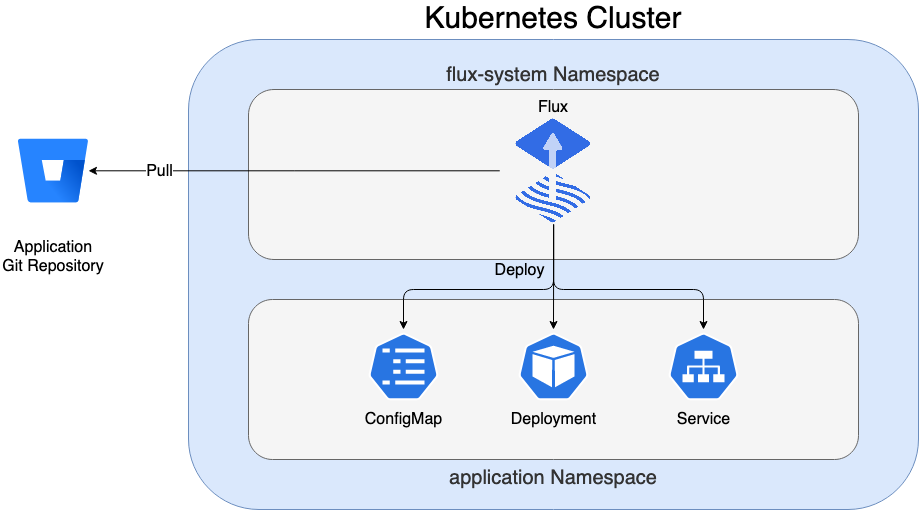

First, what is Flux? Flux is cloud-native tooling, designed to leverage the flexibility, scalability and resilience of the cloud. It can run on any Kubernetes-based solution on public/private cloud as well as on a local Kubernetes cluster. Flux is a containerized tool that serves only one purpose: implementing Continuous Delivery. To achieve this, it keeps the Kubernetes cluster on which it is deployed in sync with a config source. A typical source would be a GIT repository. The config source is monitored by Flux (pull approach); and if a change is detected, the change will be deployed to the cluster.

The change is deployed via a reconciliation method. This means that Flux will not destroy and create all resources, but only make the changes needed to match the state described in the GIT repository.  For example, you have a Deployment.yaml and Service.yaml, but only want to change the first one to use a new version of a container image. Then only the Deployment.yaml will be replaced within the cluster; without changing the service. In summary, the process of syncing the content in GIT is called GitOps.

What is GitOps?

In a GitOps approach, the state of the cluster is fully described in GIT repositories; it contains everything required to deploy an application (Deployment.yaml, Service.yaml, ConfigMap.yaml,…). To match the cluster with the state, we need an automated solution. In this case, Flux will execute a reconciliation when something has changed in GIT.

Using GitOps is considered a more developer-centric experience. It is based on tools and principles that developers already know, so additional knowledge is no longer needed.

The benefits of GitOps

The use of the GitOps approach implemented by Flux has a lot of benefits:

• the full Kubernetes cluster status is visible in GIT, making it more understandable for developers
• evelopment teams can work more independently as no complex deploy pipelines are needed
• it is a lot easier to set up additional applications that can be deployed on the Kubernetes cluster
• the use of pull request flows facilitates the monitoring of changes in applications
• branching or versioning strategies make it easy to keep different environments (test, acceptance, production) in sync.
• the approach can be uniform across all types of Kubernetes clusters (EKS, Rancher, OpenShift or a local setup)
• flux is lightweight and can be easily installed on any Kubernetes cluster as the capacity is usually already in place
• flux has good documentation and an active community

Since the Flux resources are running within our cluster, there is no need to use other development tooling (such as Jenkins or Bamboo). This also has some advantages:

• less security issues as we use a pull approach and do not need to store credentials in external tools
• no unexpected downtime caused by external deployment tools
• no unexpected downtime caused by external deployment tools
• less overhead because there is no need to maintain any deployment tools

How to manage applications with Flux

Suppose we have a GIT repo called flux-app that contains the Deployment.yaml we want to deploy. How can we instruct Flux to create this Deployment in the Kubernetes cluster?

Before we can deploy our applications, we first need to install Flux. Flux also uses a GitOps approach to manage its own installation:

1. create a GIT repository that will contain the resources for the Flux installation
2. download the Flux CLI
3. run the bootstrap command

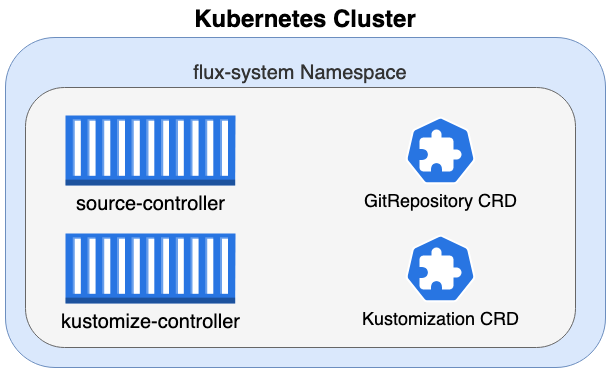

The YAML files are stored in the aforementioned GIT repository and are applied to your cluster. The main resources created are visible in the image below.

The Flux installation has added 4 important components to our Kubernetes cluster:

• source-controller pod
• kustomize-controller pod
• GitRepository CRD (Custom Resource Definition)
• Kustomization CRD (Custom Resource Definition)

⚠️ What are Custom Resource Definitions?

Kubernetes provides a specific set of API resources by default. These are the well-known resources such as Pods, ConfigMaps, Deployments, Secrets. A CR, Custom Resource, is an extension to the Kubernetes API. It provides a way to add new resource types in addition to these existing resources. However, as with known resources, we need a specification on how to create such a resource.

The CustomResourceDefinition (CRD) is basically a blueprint of what the CustomResource (CR) should look like. Moreover, we need logic on what should happen when such a resource is created. This logic is usually added to the application container, which monitors the CRD for changes and takes the required actions when they occur.

Click here for more information about this topic can be found in the official Kubernetes documentation.

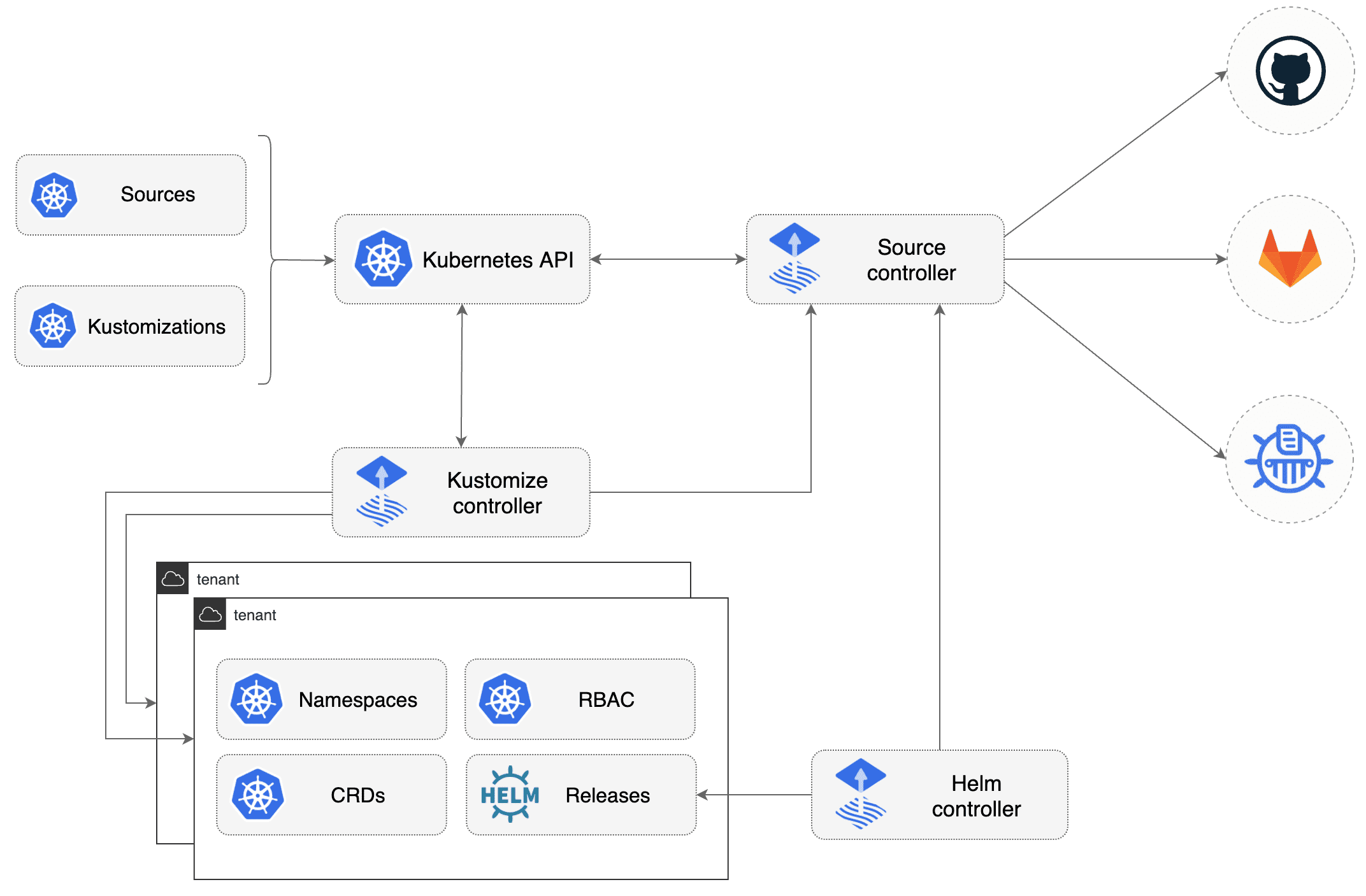

In the case of Flux, the source-controller pod has the logic to take actions when a GitRepository CR is created/modified. Similarly, the kustomize controller pod has the logic to take actions when a Kustiomization CR is created / modified. Flux provides the CustomResourceDefintion (blueprint) and the logic (running in the containers) to do something with a Custom Resource. The Custom Resource is added to the Kubernetes cluster in the next steps.

Adding GitRepository Custom Resources

Now that we have the GitRepository CustomResourceDefinition and the source controller, we can start adding GitRepository resources. This resource contains the logic to connect to the GIT repository where your application's YAML files are stored.

We create the GitRepository resource.

Note that the revision points to branch/commit-id

At this point, the GIT repository is viewed, but nothing is deployed to our cluster. To deploy the YAML files stored in the flux app GIT repository, we need to create a Kustomization resource.

⚠️ You will have to add a secret for authentication to the Bitbucket repository. Since this can be done in multiple ways, this has not been added to this article. When the secret is created, you need to reference it in your GitRepository yaml file.
secretRef: name: bitbucket-cloud-credentials

More information can be found here!

Adding Kustomization Custom Resources

The Kustomization resource will configure which GitRepository resource to watch for changes. Once the GitRepository resource points to a new revision, the kustomize-controller will deploy the current version of the artifacts to the cluster.

We create the Kustomization resource.

When we get the status of the created Kustomization resource, we see that it corresponds to the latest revision.

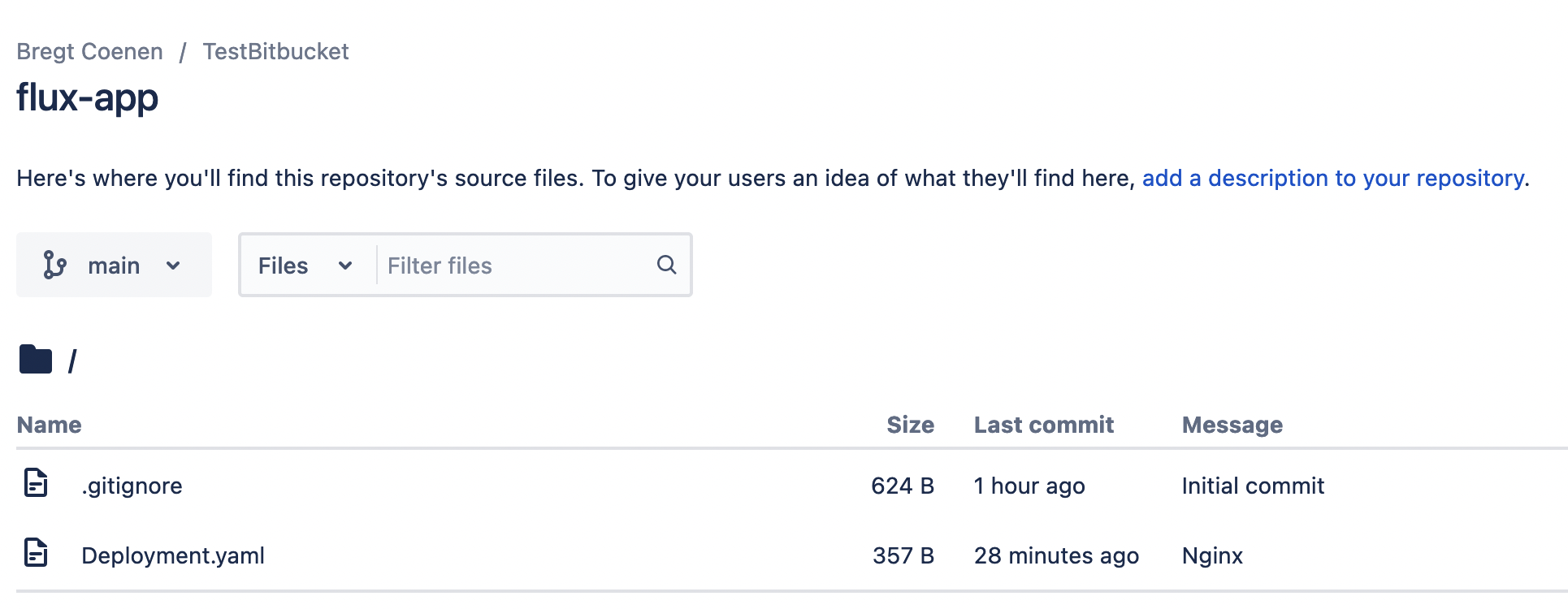

When checking BitBucket, we see there is a Deployment file in our GIT repository - the commit matches the one mentioned by Kustomization.

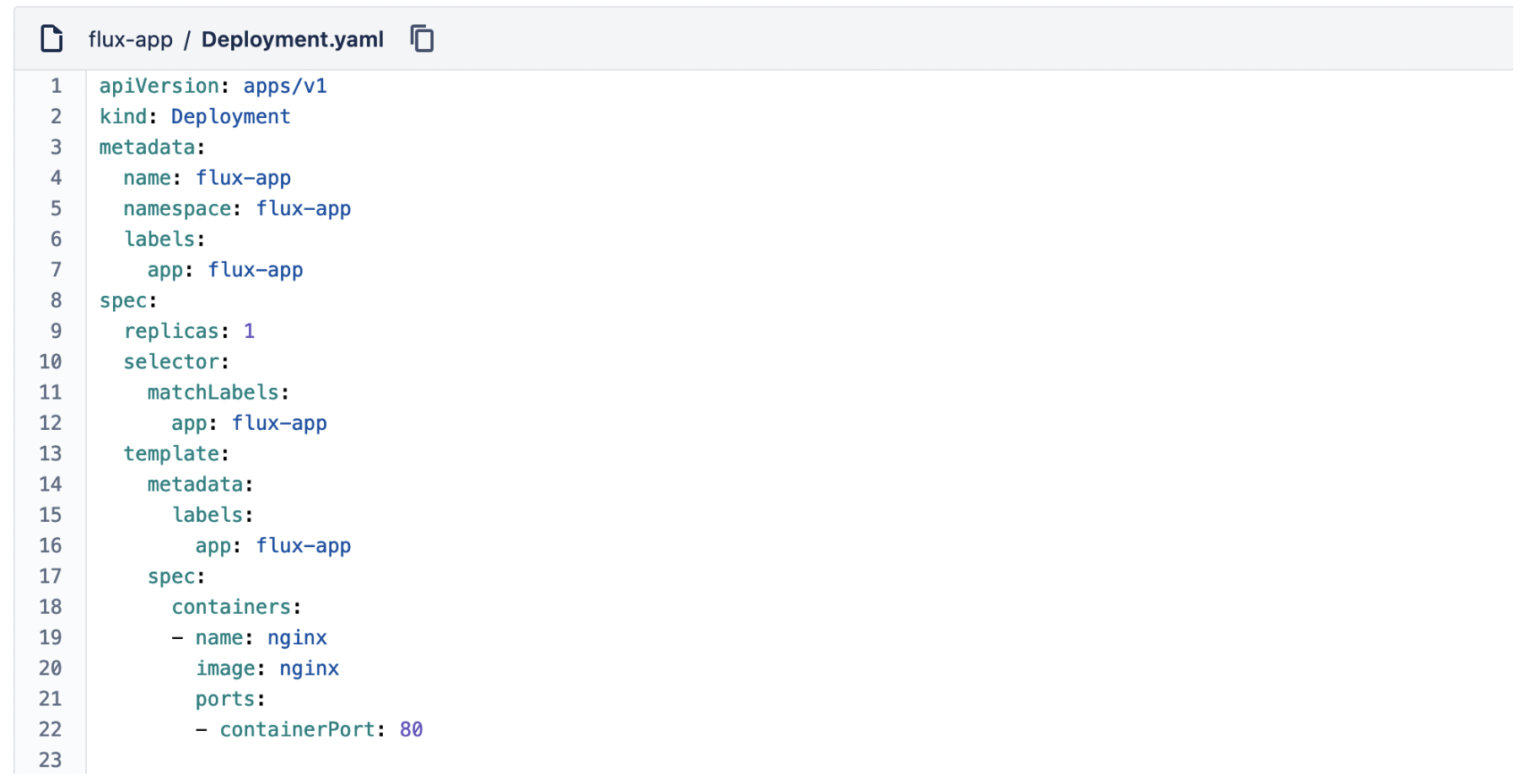

This Deployment has been applied to our Kubernetes cluster.

Putting things together

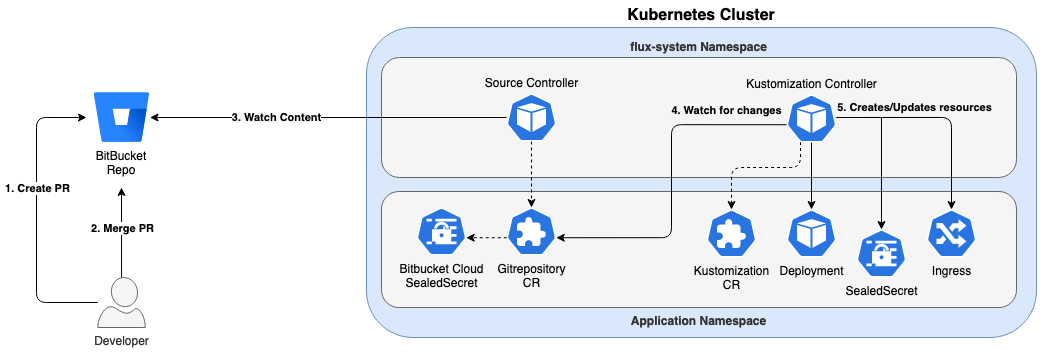

To summarize, the above design summarizes the flow:

1. a developer creates a pull request
2. the pull request is aggregated to a branch monitored by flux
3. the source controller monitors the branch; it will notice a new commit id and change the revision of the GitRepository source to 'branch/commit-id'.
4. the kustomization controller watches the GitRepository source
5. if a new version is noticed, the new version of the files will be applied, the revision of the Kustomization source will be changed to 'branch/commit-id'

Conclusion

In this blogpost, we’ve explained how Flux works and how easy it is to use Flux for continuous delivery. Within ACA, we are currently doing the migration from complex Jenkins deploy pipelines to an easy to understand GitOps approach using Flux. We believe that this GitOps approach will become the standard way to deploy workloads in the near future.
